Single Axis Unit

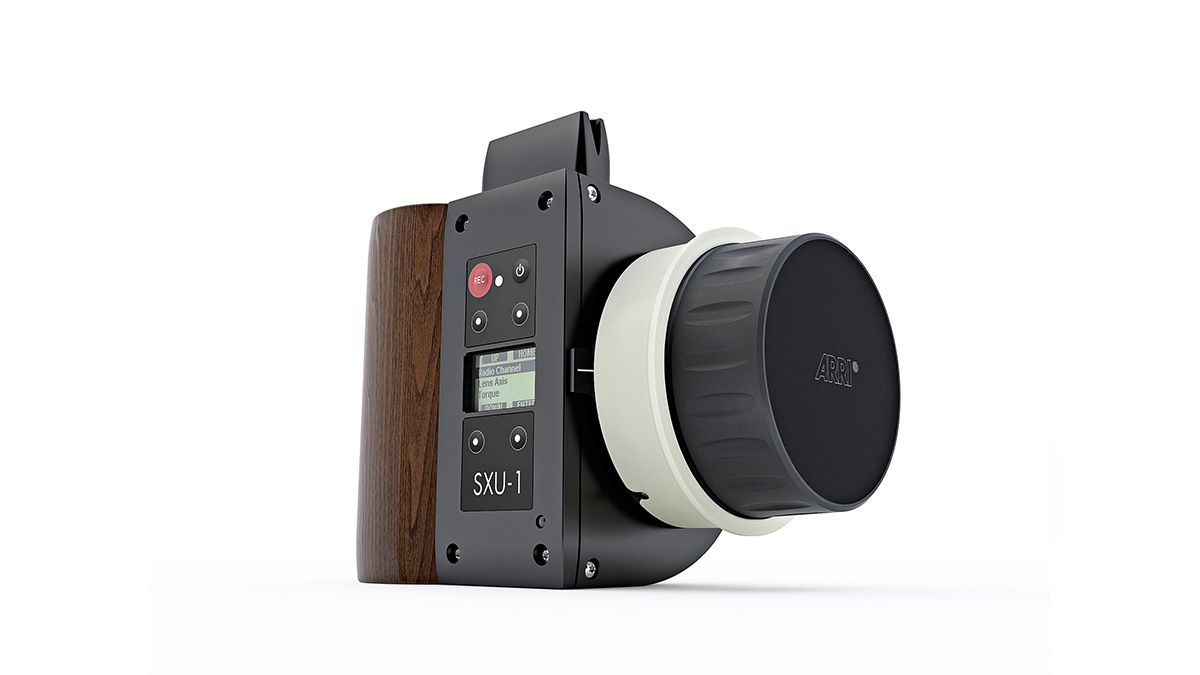

The Single Axis Unit SXU-1 is a simple single channel hand unit that can be set up to control focus, iris or zoom.
The Single Axis Unit SXU-1 is a simple single channel hand unit that can be set up to control focus, iris or zoom. The SXU-1 can be used along the WCU-4 for separate iris control, perhaps operated by the cinematographer in situations where subtle exposure adjustments are required during travelling shots. Alternatively it can be used with the SMC-1 single motor controller, providing a simple, low cost option to productions that do not need multi-axis wireless lens control.
Backlit Focus Knob
The super-smooth focus knob contains an integrated light source that shines through the wide focus ring in low light conditions, thus providing clearly readable focus marks at all times.
Optional Mounting Options

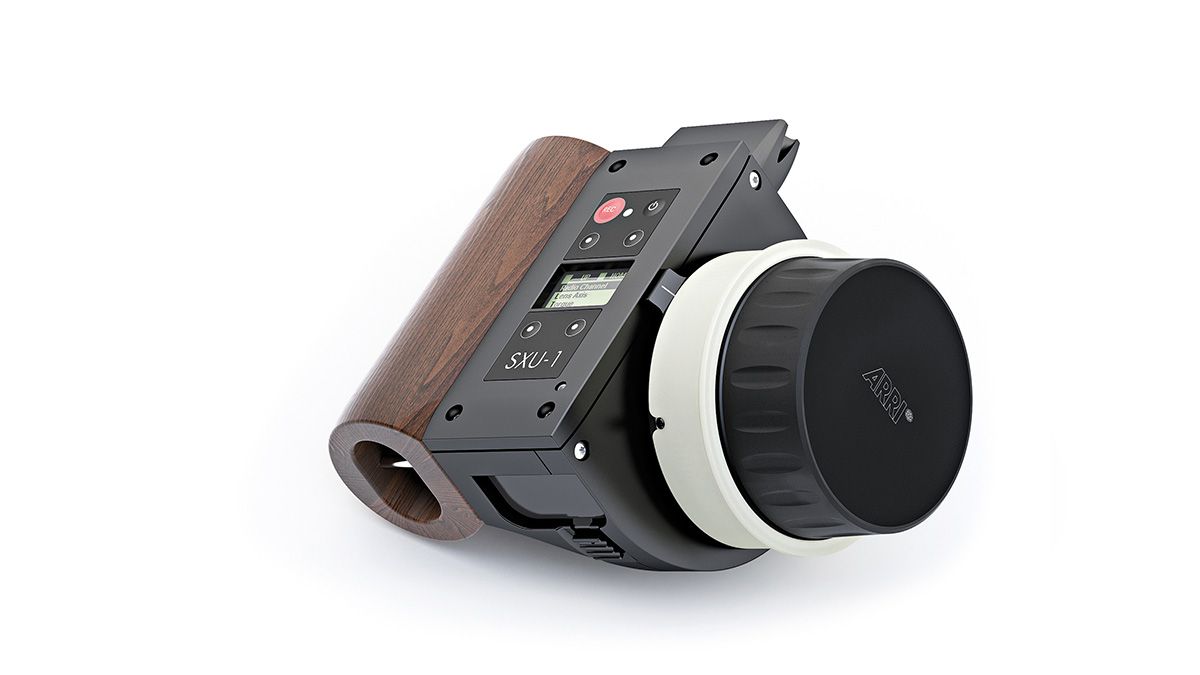

The optional Rigger Grip (K2.0000849) handgrip for SXU-1 includes UNC 3/8“–16 treads on two sides that allow mounting the SXU-1 on C-stands and other common on-set rigs.
Exceptional Quality and Service
The SXU-1 embodies the reliability and durability for which ARRI is famous. Wear and tear parts are replaceable at rental level, and the worldwide ARRI Service network ensures rapid second level support if needed. New firmware versions can be installed to the unit via SD card.
|Focus knob:||LED backlit rotary knob, 3.0” diameter
16 bit native encoder resolution
|Display:||Backlit transflective LC-Display (readable in bright sunlight)
1.2 inch diagonal
|Housing:||Durable and robust housing made of high-strength anodized aluminum|
|Mass:||Approx. 700 grams including battery|
|Power Supply:||NP-FM500H battery (Sony) or compatible batteries
BC-QM1 battery charger (Sony) or compatible chargers
Power via LCS cable through ARRI camera (cabled mode) or Hand Unit Power Supply HPS-1
|Operating Temperature:||-20°C to +50°C|
|Software Updates:||Via SD card|
|Supplied Accessories:||1x user manual (English)
1x plain white focus ring
