VacuRigg

THE CREATIVE WAY OF RIGGING

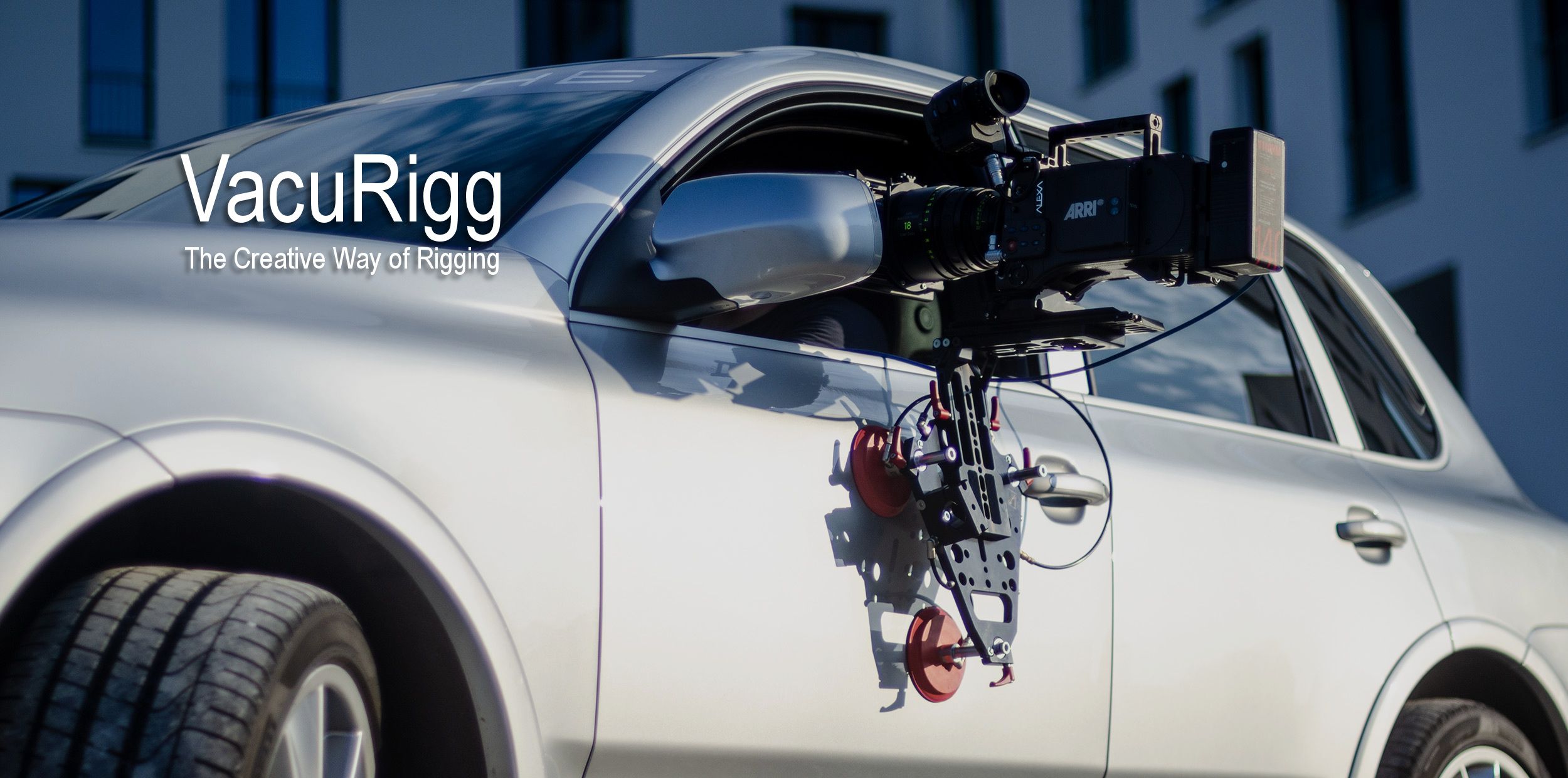

The VacuRigg System is ideal for mounting cameras, lights or other accessories on all smooth surfaces like windows, cars, walls etc.

Every time everywhere!


 THE CREATIVE WAY OF RIGGING




EVERY TIME,
EVERYWHERE


The VacuRigg System is ideal for mounting cameras, lights or other accesories on all smooth surfaces like windows, cars, walls etc. Everytime – everywhere!

FAST

Depending on how the VacuRigg is used, the three suction pads can carry a maximum payload of up to 100 kg | 220 lbs.

The Mounting plate is designed in such a way that it can accept the camera directly or mounted with a wedge/tilt plate with 3|8‘‘ screws. Assembly is completely done within seconds.

COMPATIBILITY

The pump system can be connected to a socket and also directly to a car. Both necessary cables are included in the standard kit.

AUTOMATIC

The special about the VacuRigg is the electrical pump system which keeps the vacuum automatically due to the integrated batteries. Long lasting support is guaranteed.

Your creative way of rigging knows no limit with the extension kit with its 33mm tubes.

STANDARD KIT

With the standard kit you can make shots, which are on a car.

Whether frontally on the hood, or on side with camera directed to the driver

 the standard kit covers these applications completely.




The VacuRigg Standard Kit  (180054) consists of:

  • 1x Camera Suction plate CS3  (180061)
  • 2x Extension tube 10cm  (300688)
  • 1x air hose (3m)  (180077)
  • 1x Vacuum Pump System with 220V and 12V car charging cable (180065)
  • 1x Wedge- / Tilt plate  (180066)
  • 1x Tension Belt / Hook Kit  (180076)
  • 1x Panther Universal Cleaner  (204799)









EXTENSION  KIT LIGHT

If you want to position your camera offset and outside the car body, then the Extension Kit is the perfect solution.

With the in the package included tubes (Ø 33mm), the rotating clamp and the camera mount, the camera can be positioned perfectly external the vehicle. Whether bowl (75mm – 150mm) or Mitchell – the VacuRigg is compatible with the complete standard accessories.


The VacuRigg Extension Kit Light  (180056L) consists of:

  • 2x Rigg Suction plate RS2  (180064)
  • 1x Camera mount  (180073)
  • 2x Clamp rotating (drehbar 33-48)  (180075)
  • 1x 50cm Tube (Ø 33mm)
  • 1x 80cm Tube (Ø 33mm)
  • 1x 140cm Tube (Ø 33mm)

ROTATING CLAMP

Wit h the 90°  rotating clamp  (180075) the creative rigging is limitless. It can be adjusted at diameters between 33mm and 48mm in order to take different tube sizes.



CAMERA MOUNT

To mount the camera at the tubes a suitable camera mount (180073) is included in the Extension Kit Light. Like the rotating clamp, it can be adjusted and fixed at diameters between 33mm and 48mm. The camera mount is the perfect tool to rig your camera outside the car body can be fitted with a bowl (75mm-150mm) or Mitchell (sold separately).





INFINITE POSSIBILITIES

The many ways of mounting the VacuRigg, allow maximum flexibility. You are able to react to the relevant requirements and offer always a suitable solution. The Extension Kit, with suction cups and the tube system extends this possibilities a lot. The creative rigging knows no limit!


ADAPTED TO ALL REQUIREMENTS

To cover all requirements on set, we designed various suction cups.

So the VacuRigg can be rigged and used perfectly on narrow or small surfaces. The basic length of the suction cup-tubes can be expanded by a suitable extension.

This allows even more flexible rigging and aligning of the suction plates due to the integrated swivel joints.






SUCTION CUP 50/80 SUCTION CUP 80/80-HD SUCTION CUP (oval) 140/80-HD SUCTION CUP 125/80-HD
200393 180070 180071 180067
Ø 50mm Ø 80mm width: 140mm | depth: 70mm Ø 125mm
height suction cup-tube: 80mm (expandable) height suction cup-tube: 80mm (expandable) height suction cup-tube: 80mm (expandable) height suction cup-tube: 80mm (expandable)

A total of 3 different Rigg suction plates are available. Depending on the application or load you can use the various plates. All 3 plates are compatible with the 33mm tubes contained in the Extension Kit Light. Thus, a plurality of variations can be achieved. A great way to catch your reader's attention is to tell a story. Everything you consider writing can be told as a story.

Odoo - Sample 1 for three columns

CAMERA SUCTION PLATE CS3

Part number  180061
included in  Standard Kit  (1x)
3 suction cups
1x air hose included

Odoo - Sample 2 for three columns

RIGG SUCTION PLATE RS3

Part number  180062
sold separately
3 suction cups
1x air hose included

Odoo - Sample 3 for three columns

RIGG SUCTION PLATE RS2

Part number  180064
included in  Extension Kit Light  (2x)
2 suction cups
1x air hose included





FLEXIBILITY


The integrated swivel joints basically allow a flexibility in attaching the suction cups to the surface.


In order to change the mounting angle complete, the  hinge  (200391) serves as an extension to the suction plate and allows you to mount the suction cup even around the corner.



UNIVERSAL CLEANER

Panther provides with every standard kit a  Universal Cleaner  + cleaning cloth. This allows you to clean dirty and unclean surfaces for better adhesion of the suction cups.

The suctions cups itself can be cleaned with Universal Cleaner too


All accessories and upgrades are also available separately and can always be reordered.


SAFETY

To protect your equipment, we recommend to use the tension belt and hooks which are included in the standard kit. In order to avoid scratches or other damages on a car, the hooks are rubberized.





TRANSPORT

Cases  are available for the Standard Kit and the Extension Kit Light. The cases are equipped with carrying handles and rollers. So the VacuRigg can be easily transported over longer distances.



PROVEN ON SET

The Panther VacuRigg is a versatile rigging tool, which can be perfectly adapted to different conditions on set. It is a very popular product that has been proven on set (even under tough conditions).




  • Automatically pump system with batteries
  • various vacuum pads available for versatile mounting
  • extremely stable
  • payload up to 100 kg | 220 lbs
  • compatible to standard accessories
