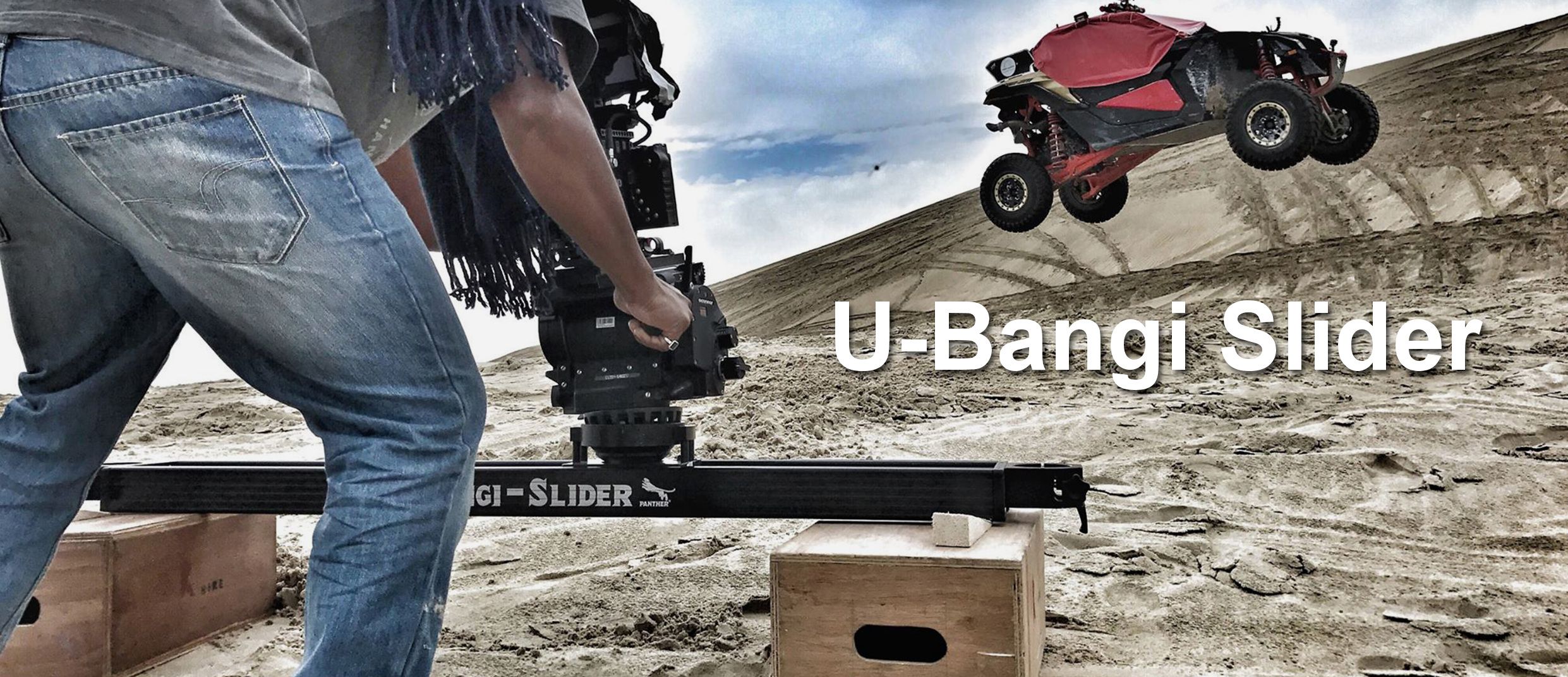

U-Bangi Slider

Designed To Be Great

With the new U-Bangi-Slider system Panther extends the already well-established U-Bangi II with many additional new features.

U-BANGI-SLIDER

DESIGNED TO BE GREAT


If you work with it one time you will always do it.

With the new U-Bangi-Slider system Panther extends the already  well-established  U-Bangi II with many additional new features.

Thus, the U-Bangi-Slider covers the typical slider function on a tripod or dolly.





Everyone has different requirements to a camera slider.
That’s why the U-Bangi-Slider can be configured indvidually  exactly to your requirements .

It consists of many individual hard coated components which enable high flexibility! Make your own U-Bangi-Slider exactly as you need it!




It is available in 6 different lengths (48cm – 296cm) and 2 different widths (19,5cm and 25cm).






U-Bangi Track 48cm | 1,6′300470
U-Bangi Track 64cm | 2,1′228107
U-Bangi Track 88cm | 2,9′228108
U-Bangi Track 136cm | 4,5′228110
U-Bangi Track 200cm | 6,6′228111
U-Bangi Track 296cm | 9,7′228112

U-Bangi-Slider Bridge, narrow  19,5cm

228115

U-Bangi-Slider Bridge  25cm

228117

3 SLEDGES

Fits any moment.



   The worldwide known sledge 1 from our U-Bangi II can also be used with our new U-Bangi-Slider to make the usual function possible.


         The new sledge is available in
standard width (25cm)  and  narrow width (19,5cm) . Depending on your needs you can configure                                                                                                             everything perfectly for you.

Sledge 1
(for U-Bangi function)

111001

Sledge 2, narrow
(for Slider function)

228120

Sledge 2
(for Slider function)

228119


6 Mounting Options






QUICK CHANGE

That fast, you’ll never want anything else again.



QUICK CHANGE

To ensure a  quick and easy  change between the standard width and narrow width, from U-Bangi sledge 1 to sledge 2 or to change the whole track length of your slider we designed something really great.

It is so small that it will not attract attention, and so great that you never want to work without it:  Quick Change Adapter

With Quick Change you win a  huge range of possibilities  which are done very fast. For example put  a second sledge  into your U-Bangi-Slider is done in a few seconds.






MAKE IT PERFECT

            2 ways to dampen the sledge.

The sledge can be optionally equipped     either with a  magnetic buffer system  or a  shock absorber . Both can dampen the sledges  very smooth . The oil hydraulic shock absorber is adjustable manually, depending on camera load.



BRIDGE EXTENSION

This redefines the word “flexibility”.


                             A lot of possibilities are given through the  bridge extension  (302339). It is compatible to many accessories.
                                             Rigging tubes (48mm), Panther Multi Mount or VacuRigg suction cups, leveling feet,
                                                                              3/8‘‘-28-16mm Adapter, Euroadapter and much more.





INVINCIBLE

Great. Down to the smallest detail.

                        Due to the  low position of your bowl (13cm)  the U-Bangi-Slider is the perfect tool to make great  low shots .



3 MOUNTING ADAPTER

Designed with passion. Manufactured with precision.






With the new 360° Rotary Adapters, long adjusting time is a thing of the past.

Adjusting the range is as easy as never before,

because the Slider can be easily moved and fixed with the Rotary Adapters.

Due to the precision bearing, a soundless 360° rotation, even when load, is possible with ease.

A strong brake lever provides a solid fixation of the whole unit, wherever needed.

Rotary Adapter

228123

Suitable for all U-Bangi tracks. Just  for standard track configuration.
Must be combined with Bowl Adapter (300441), Mitchell Adapter (136907) or Tube Flange (228122).

Rotary Adapter (narrow)

228118

Suitable for U-Bangi tracks 64cm, 88cm and 136cm.

Just  for narrow track configuration. Must be combined with Bowl Adapter (300441), Mitchell Adapter (136907) or Tube Flange (228122).

Adapter Plate

300374

Suitable for U-Bangi tracks 64cm, 88cm and 136cm.

For narrow and standard track configuration. Must be combined with Bowl Adapter (300441),
Mitchell Adapter (136907) or Tube Flange (228122).




Bowl Adapter

300441

Mount the Rotary Adapter,

Rotary Adapter narrow and Adapter Plate on a 150mm tripod.


Mitchell Adapter

136907

Mount the Rotary Adapter,

Rotary Adapter narrow and

Adapter Plate to mitchell mount.


Tube Flange

228122

Mount the Rotary Adapter,

Rotary Adapter narrow and Adapter Plate on a Euroadapter (e. g. on a Dolly).


FEEL THE FREEDOM

We are sure: you will love it.

The U-Bangi-Slider is the only one, which  forms a unit together with the dolly . Whether as a slider or a low rig, it can be perfectly integrated to guarantee the best possible shots.







CLOSE TO THE GROUND

For every usage the right accessories.






For shots  close to the ground  you can use  leveling feet (110391) . You are able to level the slider exactly to your needs.


For sensitive surfaces you can use our  rubber feet (202442) . They are mounted very quick into the tracks’ groove (just 48cm, 64cm, 88cm and 136cm track) without any tools



EASY

Loved for its’ versatility.


    On set the U-Bangi-Slider is meeting with great enthusiasm. Due to the variety of possibilities, it offers numerous settings.                                    High and low shots can be implemented quick and easy without time consuming adjustments:



CAR MOUNT

Maximum  flexibility for versatile usage.



suction cup (145993)  and a  tube (180072)  from our Multi Mount system ensures to  rig the U-Bangi-Slider on a car . Different shots and angles are possible.

To  remote control  the U-Bangi-Slider we developed a  drive unit (301030) .

Operation is done with the new
handset (301031)  for the drive unit. It’s compatible to  all Slider lengths  and can be equipped with  end switches  (manual positioning possible).





Remote Controlled Versatility

FLUID DRAG

For very smooth and precise movements.

For very smooth movements there is a  Fluid Drag  (302333) available. By turning to “+“ or “-“ you can  adjust the fluid intensity .



OLD BUT GOLD

We didn’t change the program. We expanded and improved it

Despite the number of new features, the well-known standard U-Bangi function certainly remains.

All existing U-Bangi II can be upgraded!
