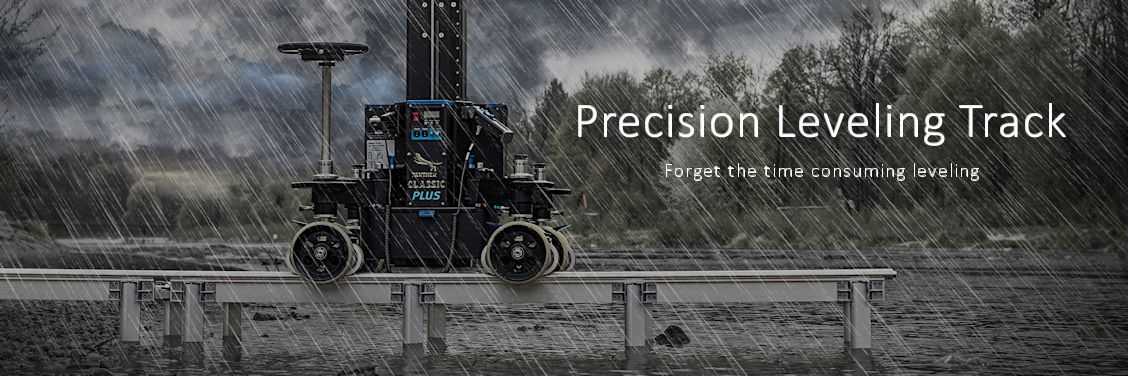

Precision Leveling Track

AWARDED WITH THE CINE GEAR TECHNICAL AWARD 2015

Save time on set – with the new innovative Panther Precision Leveling Tracks with integrated leveling system.

AWARDED WITH THE  CINE GEAR TECHNICAL AWARD 2015

In year 2015 we were awarded again: the  CINE GEAR TECHNICAL AWARD  in the category  camera support .




AWARDED WITH THE  CINEC AWARD 2014

Our Precision Leveling Tracks were awarded with the Cinec Award 2014! The Jury was impressed by the three huge advantages that the tracks have:

FASTER, EASIER, AND MUCH MORE SAFETY


We thank the jury, and of course to all our customers!

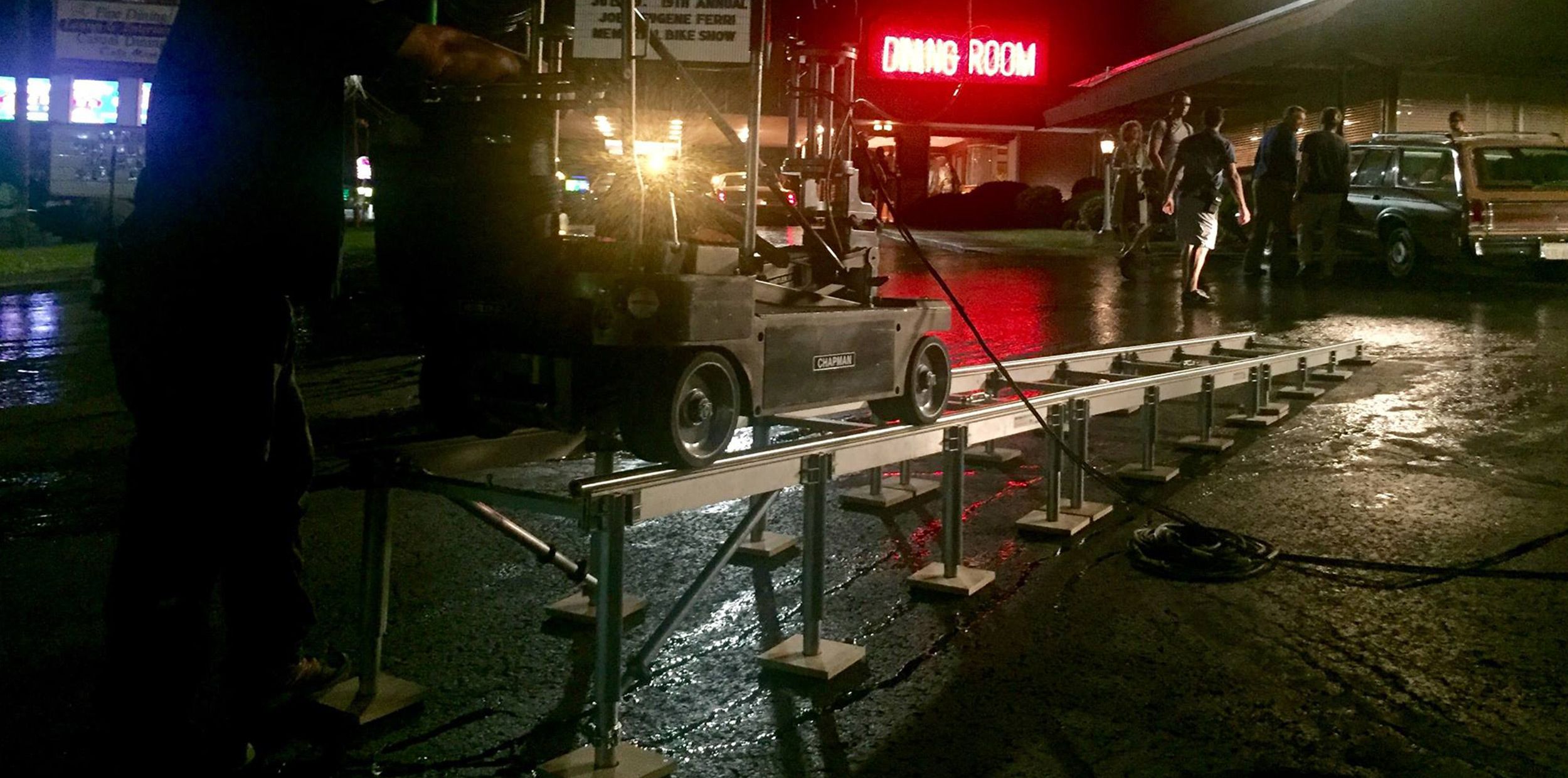

PRECISION LEVELING TRACK

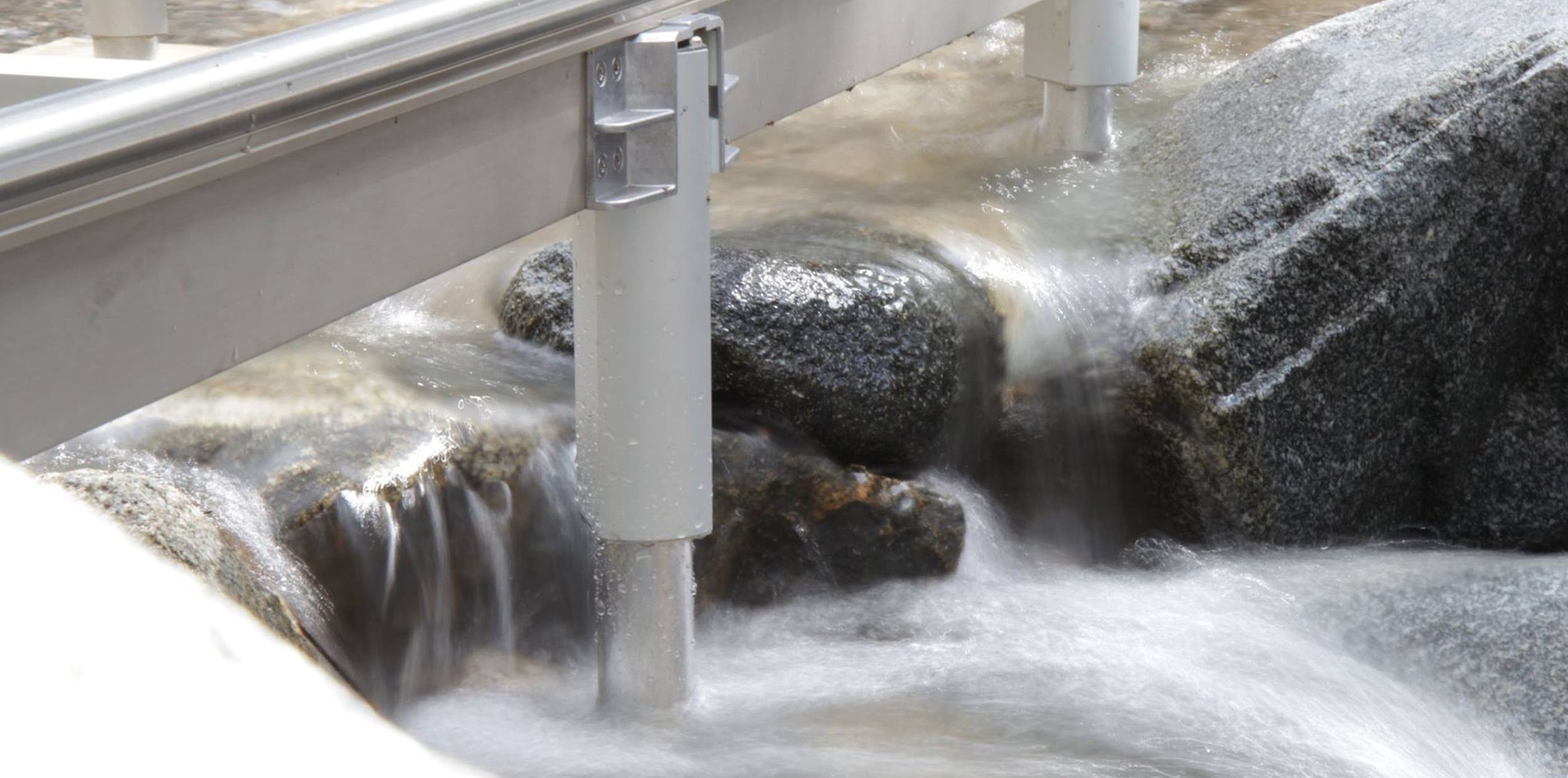

IN ACTION
















TIME-SAVING

Save time on set – with the new innovative Panther Precision Leveling Tracks with integrated leveling system. Various telescopic tubes offer you infinitely variable leveling possibilities from 0cm up to 67cm / 26.4“.




3 STEP LEVELING

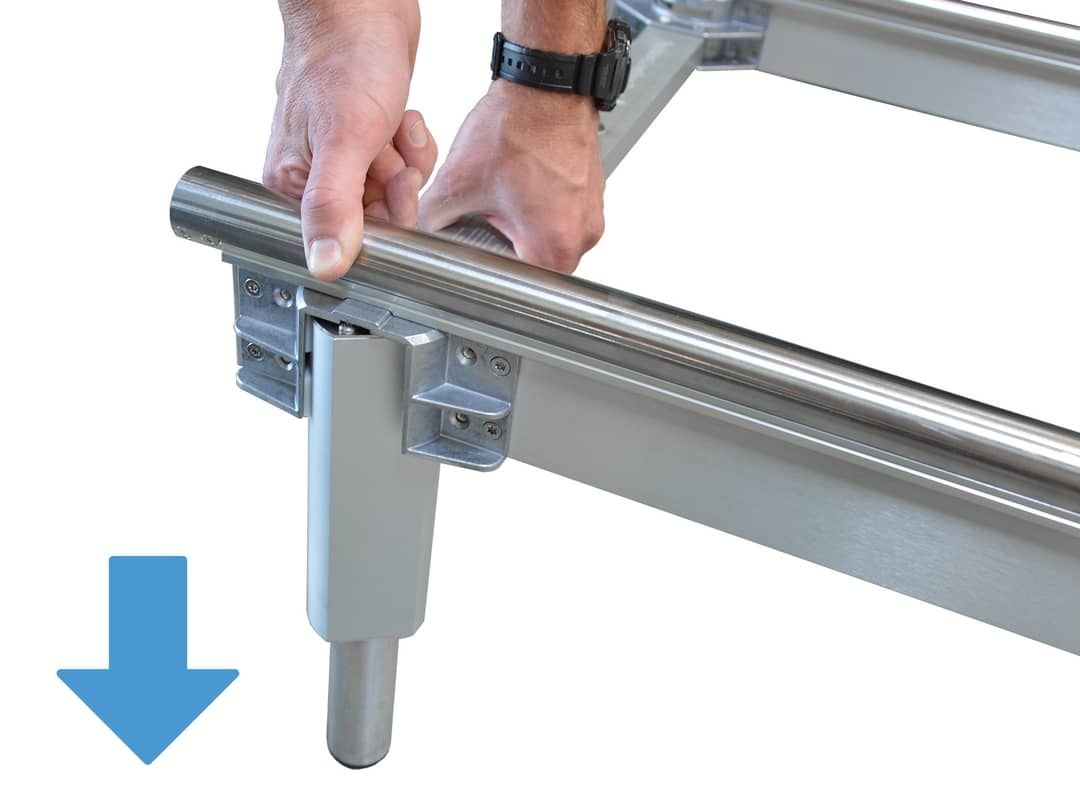

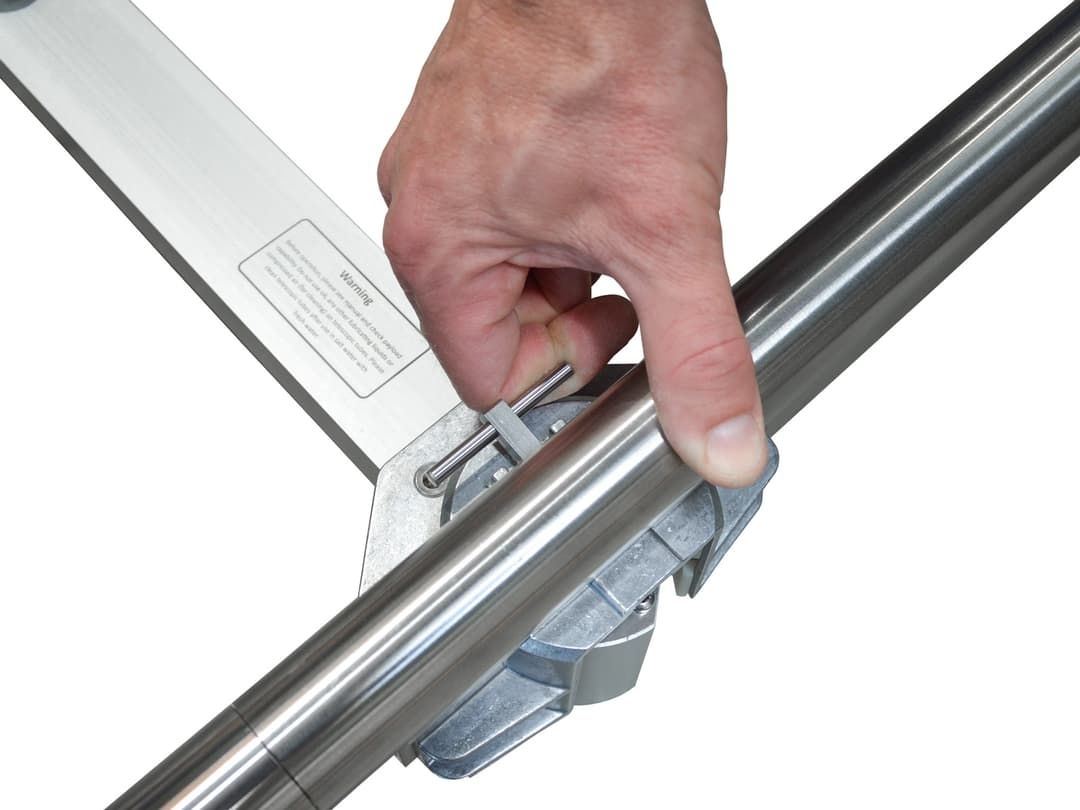

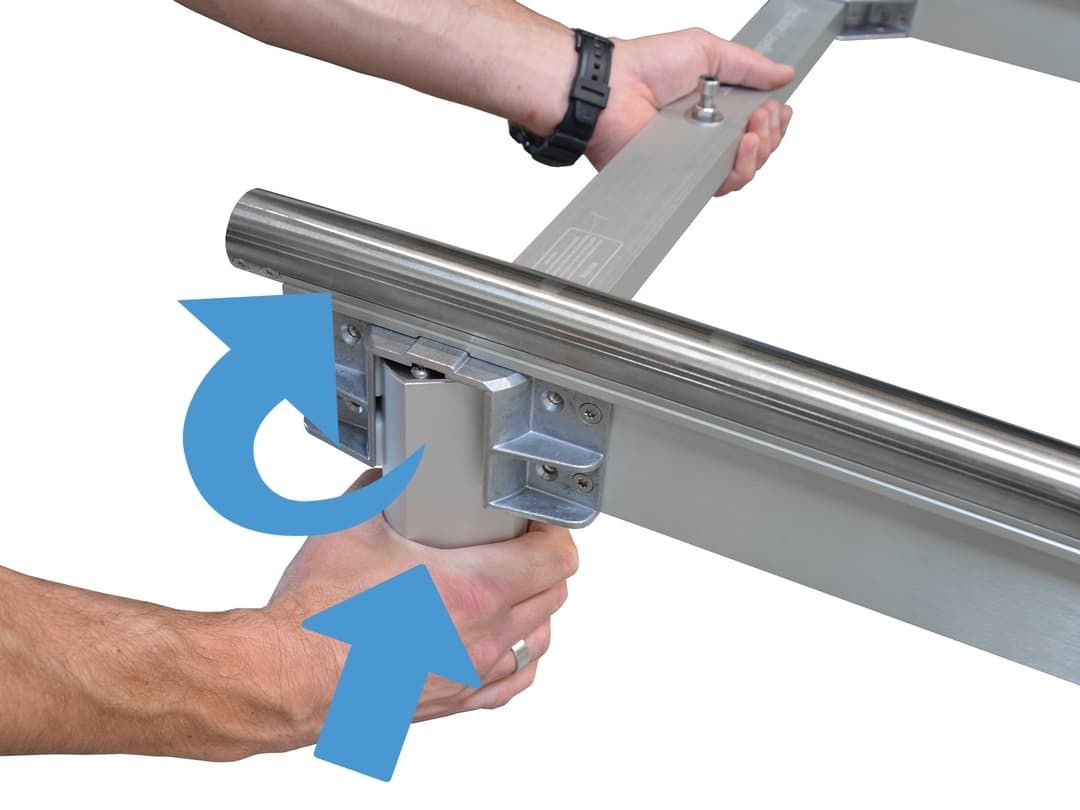

The telescopic tubes are mounted without any tools and can be adjusted stagelessly. Every telescopic tube has a payload of 850kg /                                                      1874lbs. A track integrated adjustment mechanism makes the leveling very easy.

INNOVATIVE

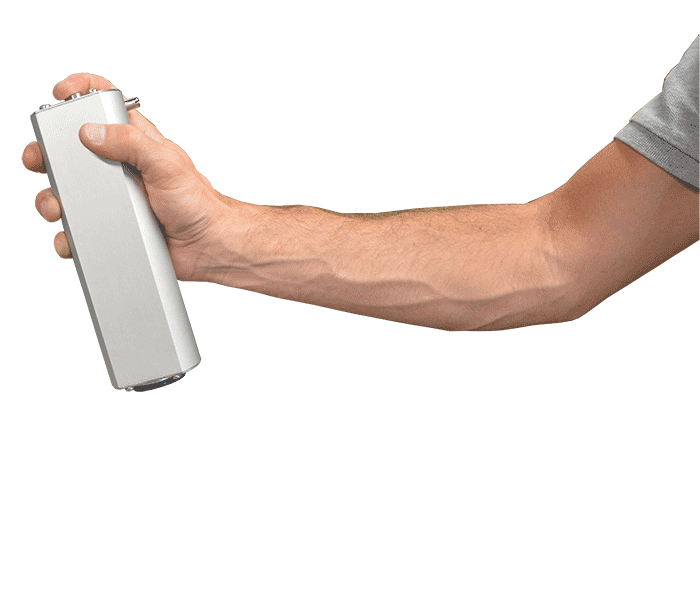

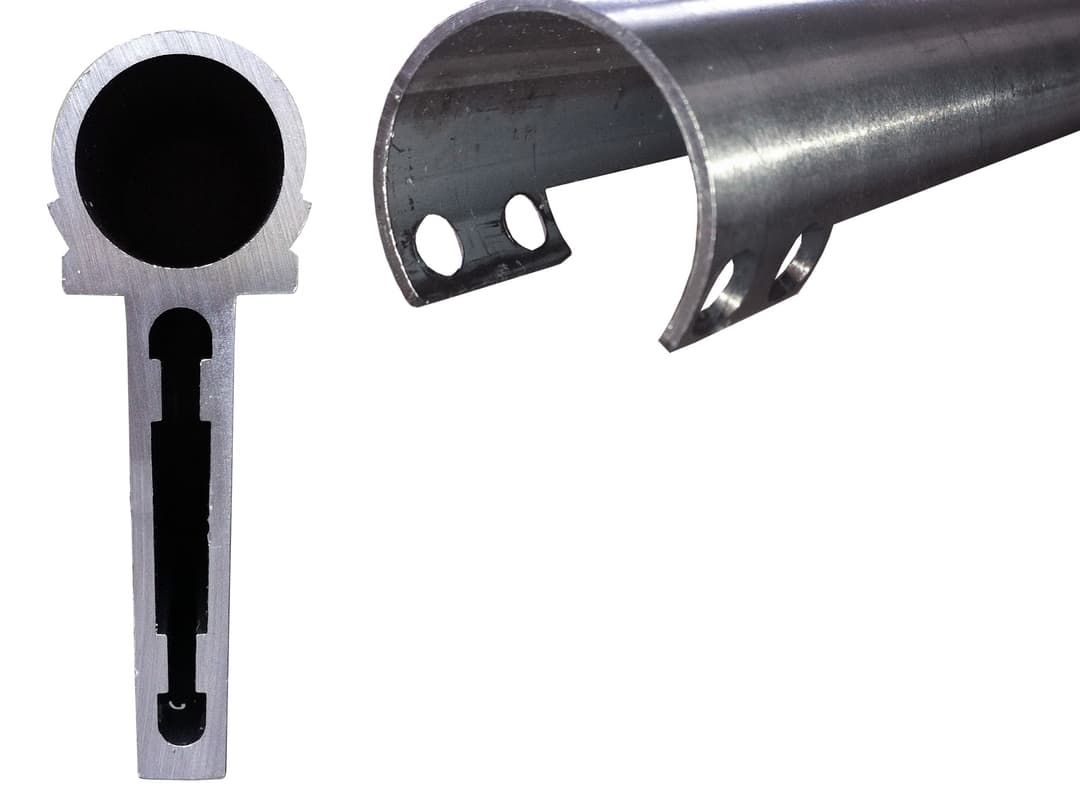

New innovative and lightweight stainless steel track protection offers a maximum of resistance and protects the track surface.


Odoo text and image block



Odoo text and image block

SAFE

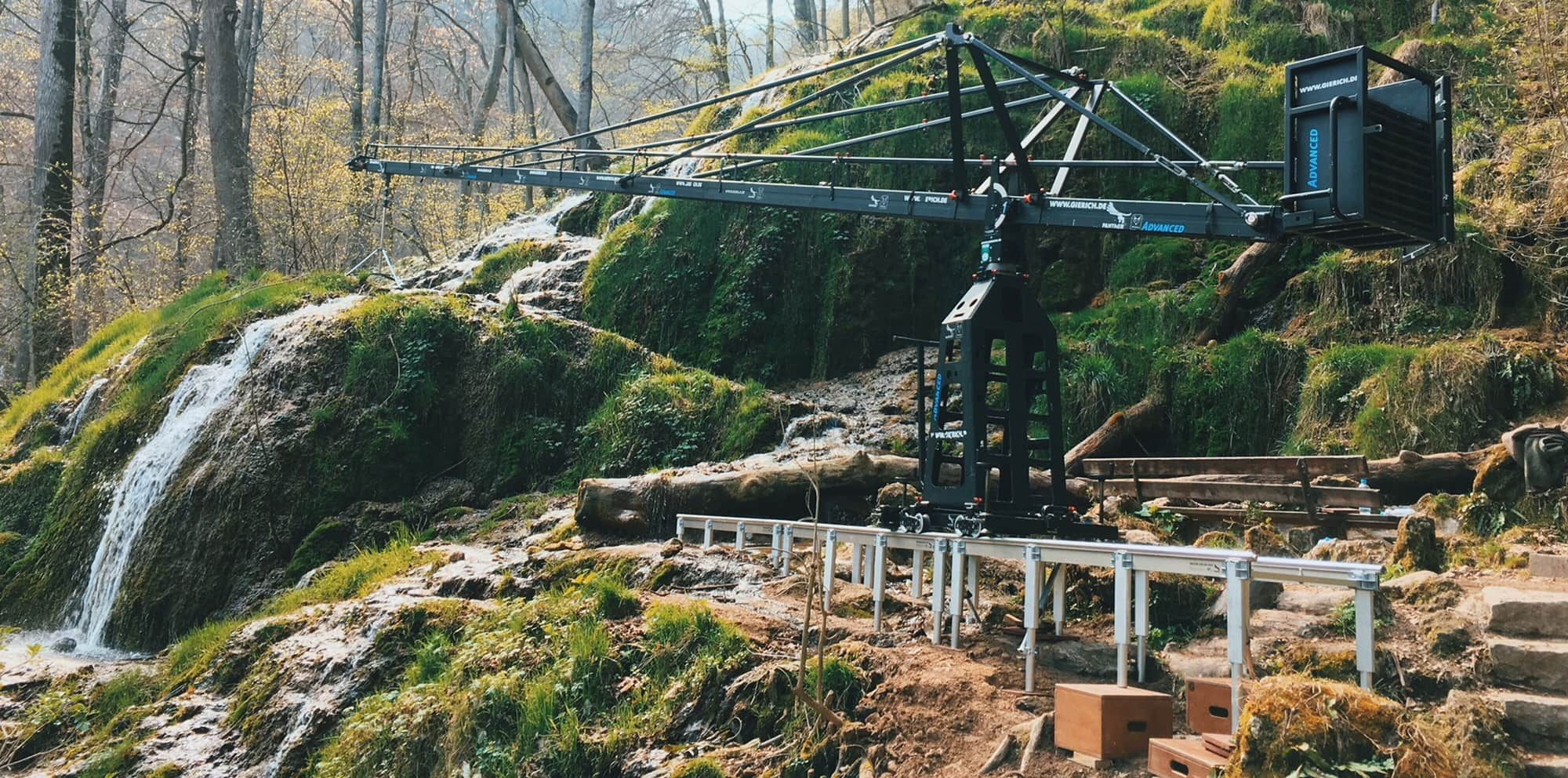

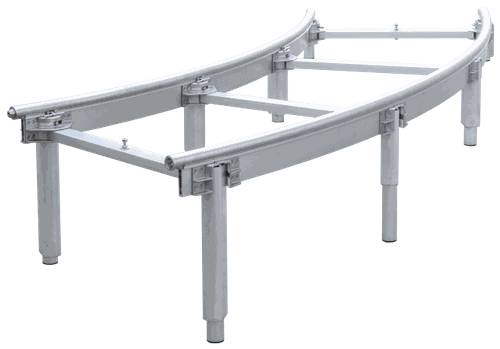

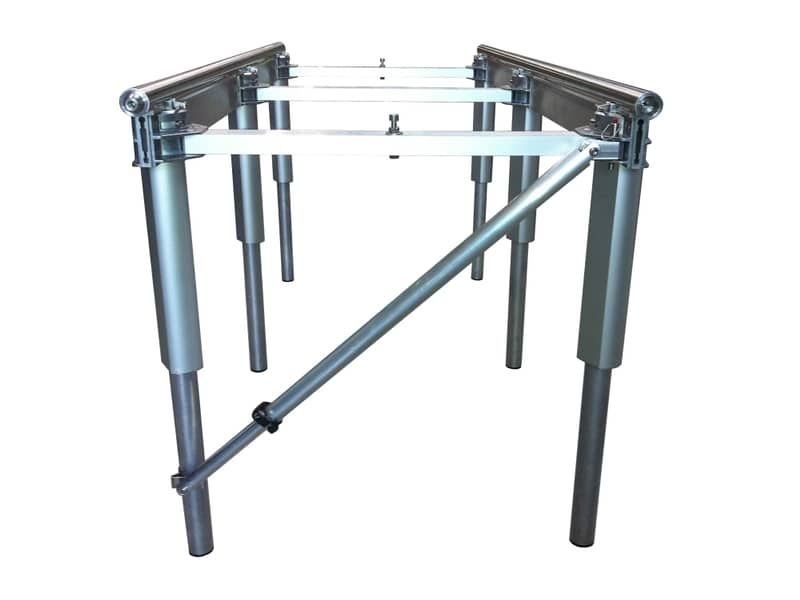

For heights over 50cm and crane use cross beams are available, which enable more stability – even at high loads.

TRANSPORT

A transport cart provides easy and comfortable transportation of the telescopic tubes.

NO COMPROMISE

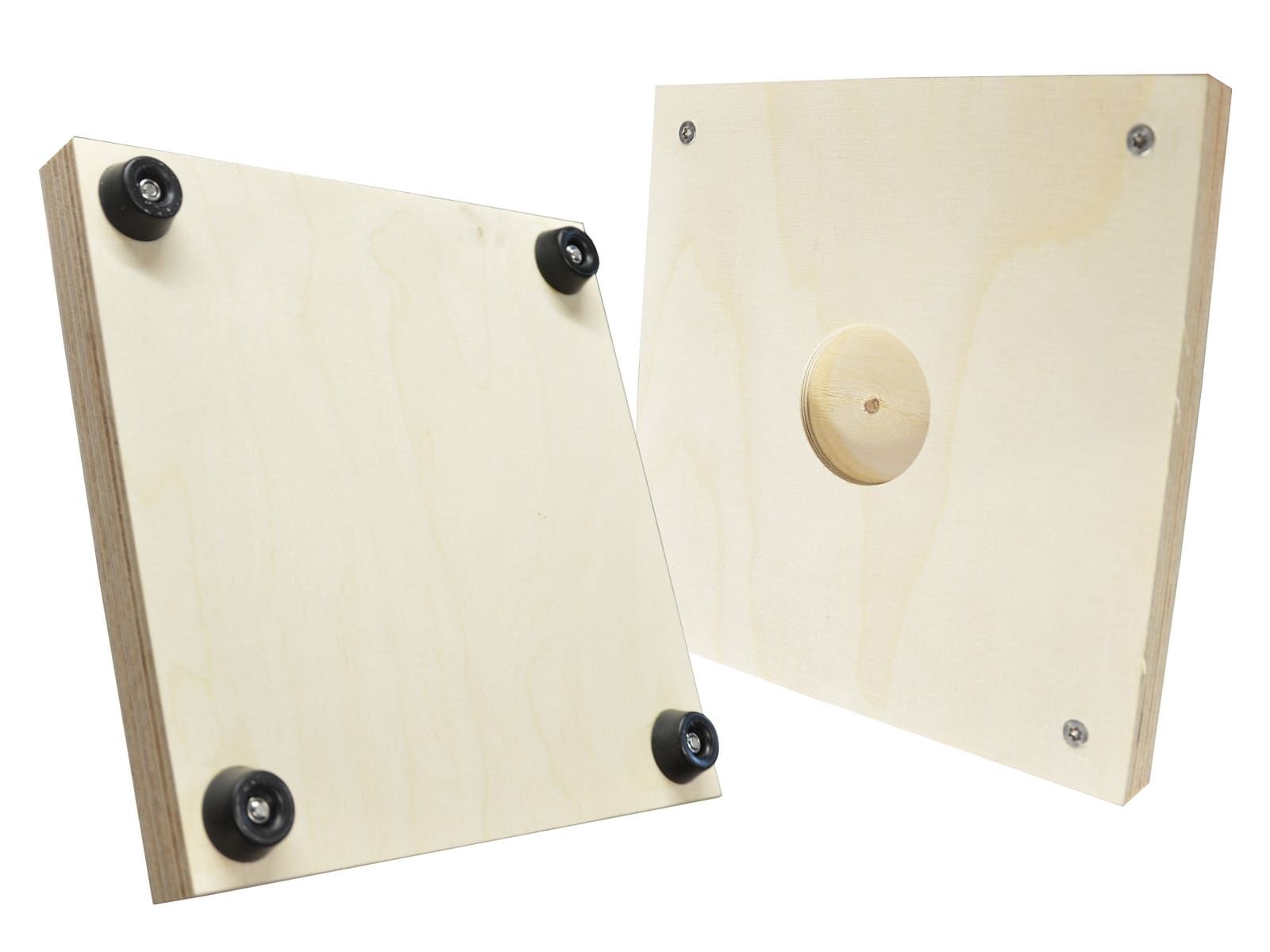

Wood plates are available for unstable underground.

DETAILS

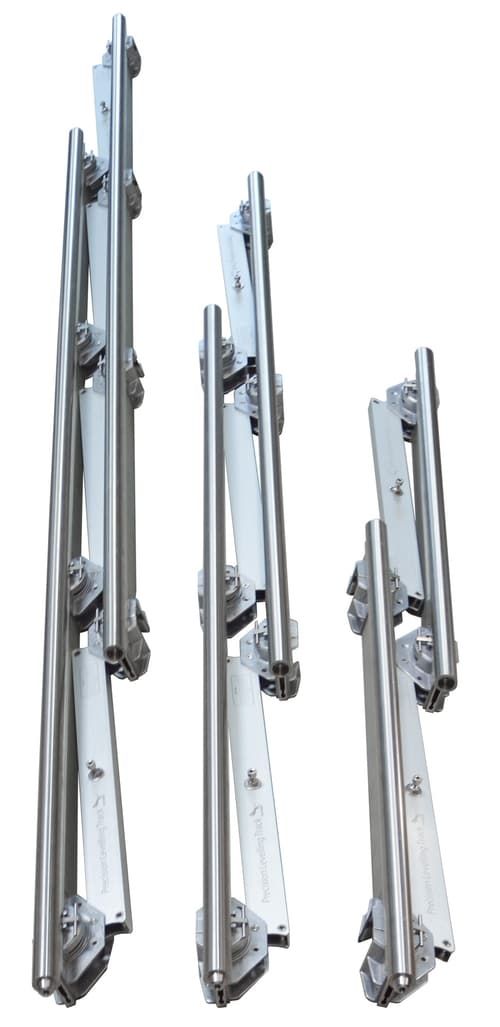

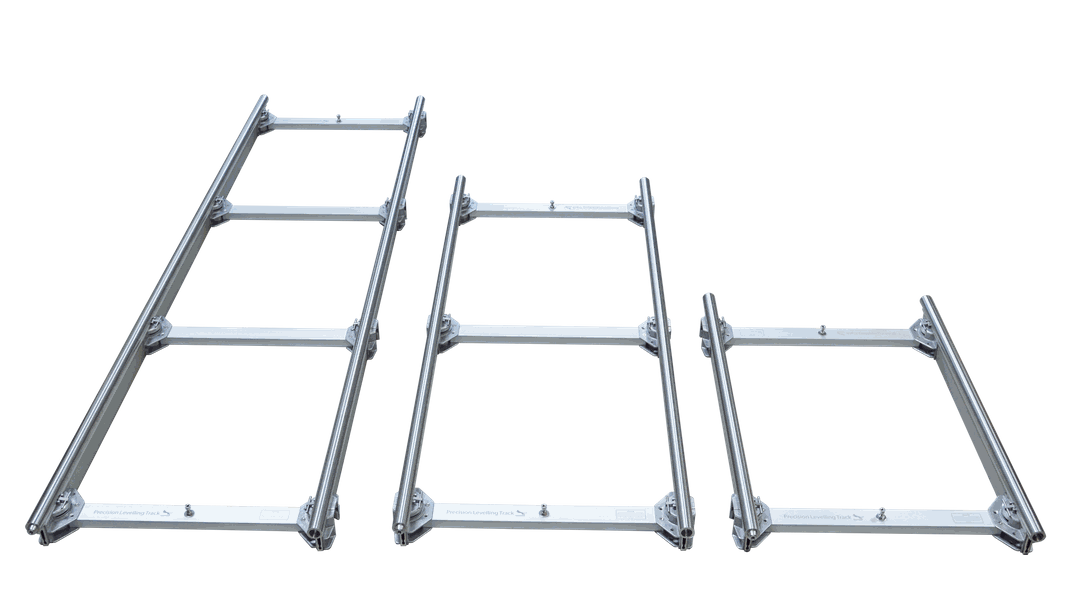

Following Precision Leveling Tracks are available:



62cm track gauge

Precision Leveling Track 62, 0,9m / 3‘
Precision Leveling Track 62, 1,6m / 5‘
Precision Leveling Track 62, 2,3m / 7‘6‘‘

100cm track gauge

Precision Leveling Track 100, 0,9m / 3‘
Precision Leveling Track 100, 1,6m / 5‘
Precision Leveling Track 100, 2,3m / 7‘6‘‘

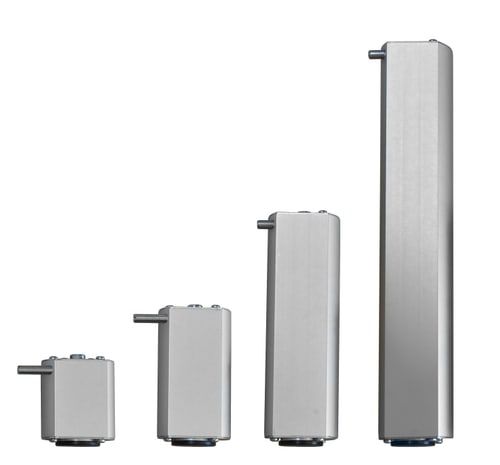

Following Telescopic Tubes are available:

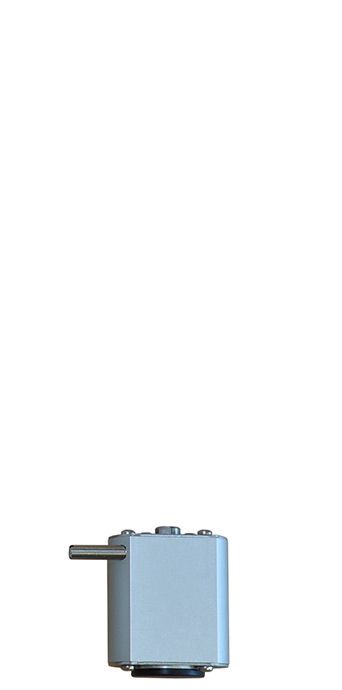

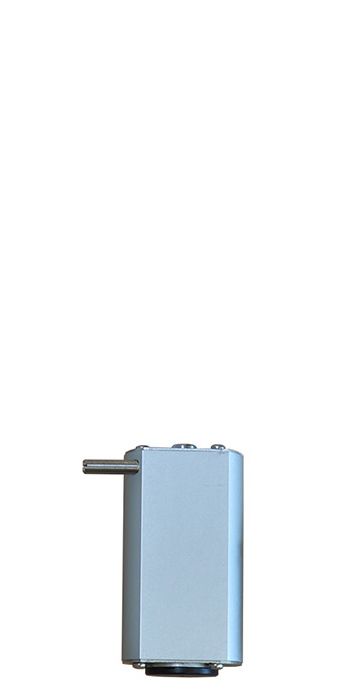

Telescopic Tube 7cm / 2.8"

Telescopic Range:

0-4.5cm = 4.5cm /1.6"

228087

Odoo - Sample 2 for three columns

Telescopic Tube 11.5cm / 4.5"

Telescopic Range:

4.5-13cm = 8.5cm /3.3"

228088

Odoo - Sample 3 for three columns

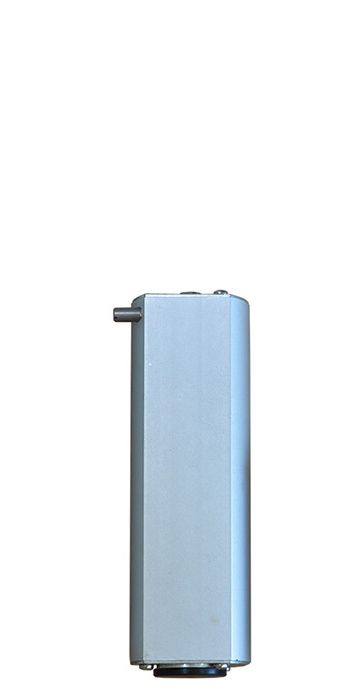

Telescopic Tube 20cm / 7.9"

Telescopic Range:

13-29cm = 16cm /6.6"

228089

Odoo - Sample 3 for three columns

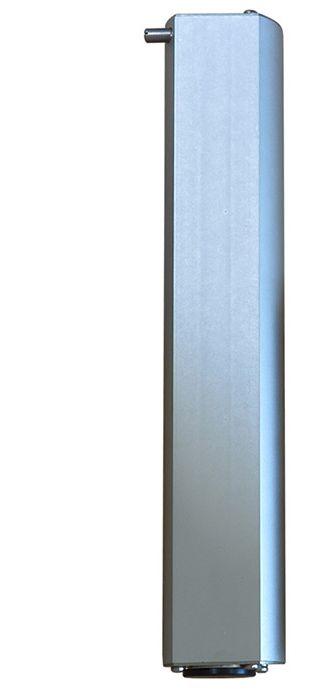

Telescopic Tube 36cm / 14.2"

Telescopic Range:

29-60cm = 31cm /12.2"

228090

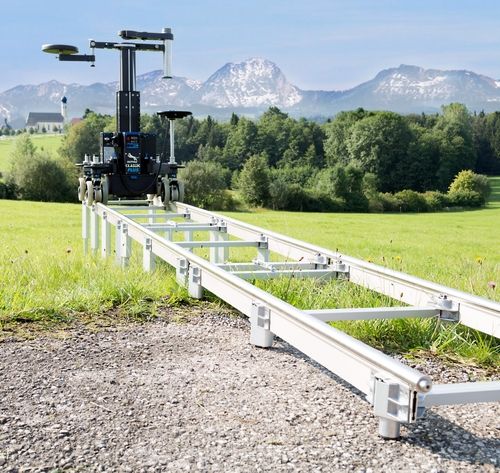

USAGE



YOU WILL LOVE IT
