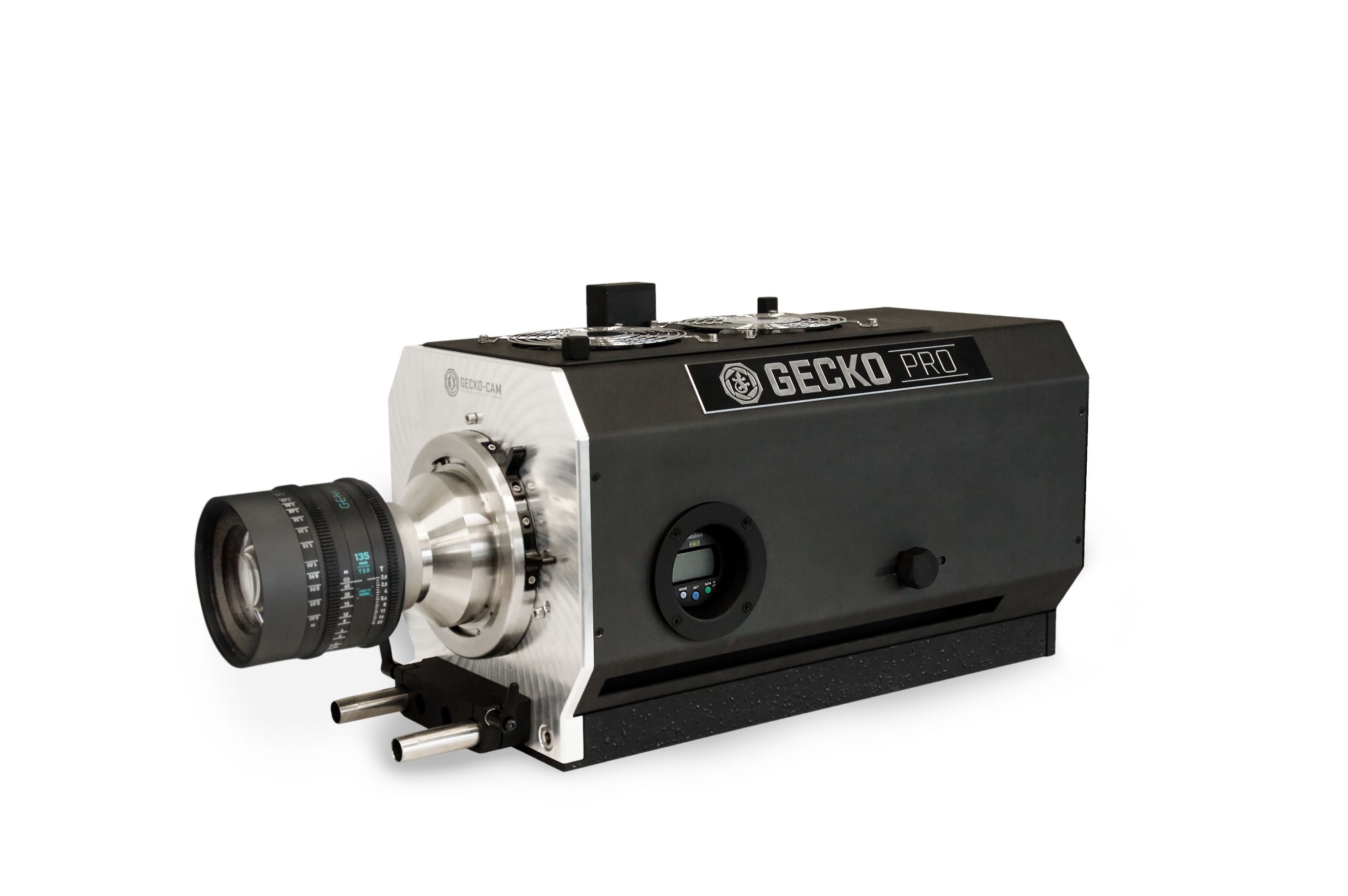

LFL Test Projector

Large Format Capable Test Projector

A newly designed condenser lens array now results in substantial increase in light throughput.

LFL Test Projector

A newly designed condenser lens array now results in substantial increase in light throughput.


Projection System

A newly designed condenser lens array now results in a substantial increase in light throughput.
(Approximately 100% / double the throughput). A larger image circle with a 60mm diameter.

This in turn allows for the use of larger reticles having a mechanical diameter of 80mm.

The light source and lens array have been combined into a movable unit having a 50mm axial shift range. This allows for optimal positioning of the light cone to suit the format being examined.

The intensity of the light source can also be controlled (i.e. dimmed) independently.

Odoo text and image block

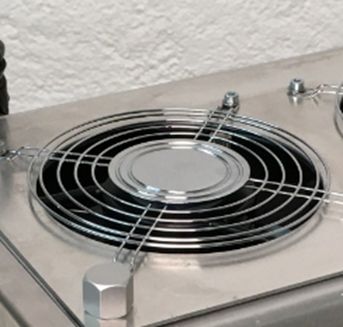

Odoo image and text block

Positioning Of Test Screen (i.e. Back Focus)

Position of the reticle can be adjusted via remote control to +/- 0.5mm. The position is easily readable via an integrated digital indicator dial.

The indicator dial unit can be set to store and recall a desired reference position. In this way, the offset to a given ideal flange distance can be determined with an accuracy of 0.001mm.

An optional accessory display can be placed for more comfortable operation when working with longer lenses.

Lens Mount And Reticle

A large, robust breech-lock system (similar in principle to PL) allows for interchange of various camera / lens mounts and avoids rubbing between intermediate mounting surfaces.

If needed, both centering and parallelism alignment of the reticle can be performed with out any troublesome disassembly of the projector.

Odoo image and text block
Odoo image and text block

Support And Accessory Interfaces

  • Fischer socket 12V

  • Hirose for zoom on broadcast lenses

  • Flexible lens light with on/off

  • 19mm or 15mm (studio offset) iris rod mounts; rods can be pushed into projector, allowing for freedom with rod length positioning



Technical Specs.



Interchangeable Mount System (IMS )

available mounts to use on our camera and lens testing bench or on the lens testing projector with IMS lens mount system:




Id-No.:

Description:



Id-No.:

Description:

GC.18431.0

PL - Mount



GC.22646.0

Canon FD Mount

GC.18384.0

Panavision Mount


GC.20506.0

BNC - R Mount

GC.23499.0

Nikon Mount


GC.18380.0

Leica R Mount

GC.18382.0

Canon EF Mount


GC.19906.0

Leica M Mount







L x W x H: 500 x 270 x 310mm

Weight: 30kg / 66 lbs.


Electrical:

  • Input: 100-240 VAC, 50/60 Hz

  • Light source: 400W, 36V

  • Lamp socket: G6.35
